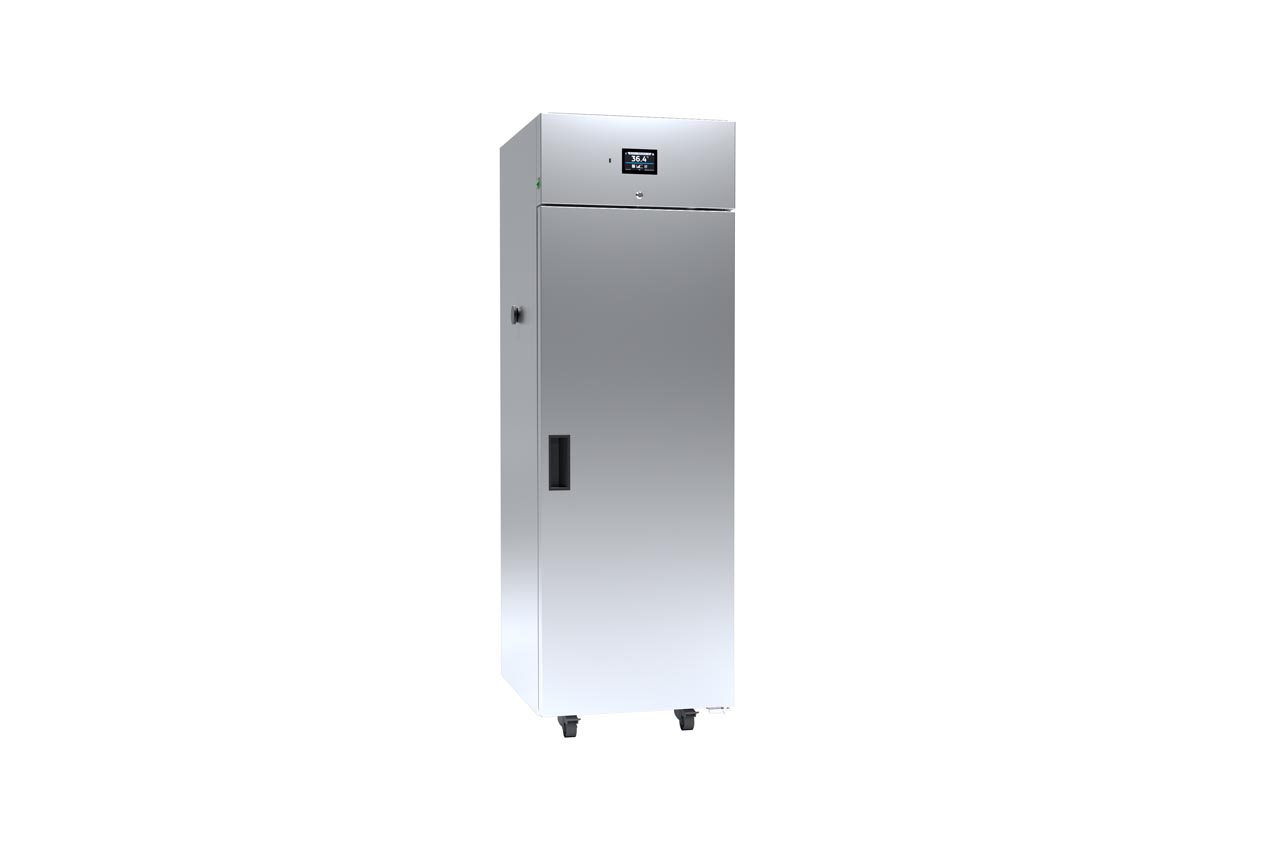

Climatic Chamber KK 500 Smart PRO

Application:

Climatic chambers with an ultrasonic humidifier
Climatic chambers with an ultrasonic humidifier are professional and reliable equipment to guarantee stable and precise conditions
They can be used for seed germination fungus and plant growing or food tests Perfect climatic conditions allow you to perform stability tests of pharmaceuticals and cosmetics as well as packaging and electronics
The ultrasonic humidifier uses piezo-electric generators which convert electrical energy into mechanical vibrations energy
The generators are immersed in deionized water and smash it into very small drops which are consequently sprayed uniformly inside the chamber

  • growth of plants and fungus
  • seeds germination
  • microorganisms and insects breeding
  • photostability tests
  • food preservation tests
  • any kind of research that requires a stable temperature and humidity environment (optionally light)
  • tests of building materials

Advantages of the SMART PRO controller:

  • large (7 inches), clear, full colour touch screen
  • LAN, USB ports and WiFi for communication and data transfer
  • multi-segment time and temperature programs
  • overview of data in tabular and graphic form
  • visual and sound alarm
  • Admin function for management
  • password protected log-in
  • internal memory for programs and data storage
  • event registry with user notifications
  • LabDesk software and user manual for direct download

Climatic Chamber KK 500 Smart PRO

Technical data Smart

Informazioni aggiuntive

type

KK 500 Smart PRO
air convection

forced
chamber capacity (l)

462
working capacity (l)

392
controller

microprocessor PID
display

7" full colour touch screen
temperature range (°C)

0…+60
temperature resolution every (°C)

0,1
temperature variation at 25°C and 60%rH (+/-°C)

2
relative humidity range (%)

30…90 (see chart for details)
humidity resolution every (%)

1
humidity variation at 25°C and 60% rH (%rH)

5
over temperature protection

class 3.3 to DIN 12880
door

double (external solid, internal glass) / external glass (option)
interior

_bw
housing

_bw
Smart PRO

powder coated sheet
IG Smart PRO

stainless steel linen finish
overall dims (mm) /1/

_bw
A width

660
B height

1990
depth C

1010
internal dims (mm)

_bw
width D

470
width D 2

510
height E

1510
depth F

600
height I

1360
shelves (standard - max)

3, 11
max shelf workload (kg) /2/

20
reinforced shelf version (PW) (kg) /3/

100
max unit workload (kg)

100
weight (kg)

130
power supply

230V 50-60Hz
nominal power (W)

1850
refrigerant

R290 / GWP=3
warranty

24 months

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
