all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
Pass-Through Sterilizer SRWP 240 Smart
-
BOD Incubator (3)
-
Climatic Chamber (13)
-
Climatic Chamber with Phytotron System (16)
-
Congelatori (21)
-
Cooled Incubator (28)
-
Cooled Incubator (IL) (10)
-
Cooled Incubator (ST) with freezer (4)
-
Cooled Incubator (ST) with refrigerator (4)
-
Drying Oven (37)
-
Drying oven with nitrogen blow (5)
-
Heating-up chamber (5)
-
Laboratory Freezer (12)
-
Laboratory Incubator (26)
-
Laboratory Refrigerator (29)
-
Laboratory Sterilizer (9)
-
Pass-Through Sterilizer (2)
-
Peltier-Cooled Incubator (8)
-
Refrigerator with freezer (4)
-
Ultra-Low Freezer (8)
Application:
Pass-through sterilizers are made on the basis of standard laboratory drying ovens and are used on production lines as well as a connector drying / sterilizing between clean and dirty areas
drying of painted and lacquered components
drying/sterilizing of components between clean and dirty zones
drying of components on production line
Advantages of the SMART controller:
- 4,3 inches, clear, full colour touch screen
- LAN, USB ports for data transfer
- multi-segment time and temperature programs
- visual and sound alarm
- internal memory for programs and data storage
- event registry
- user manual for direct download
- Quick change of program parameters
- Alarm Bar
- operating with gloves on

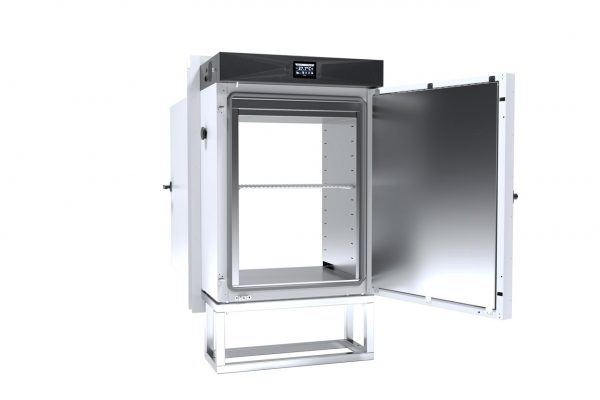

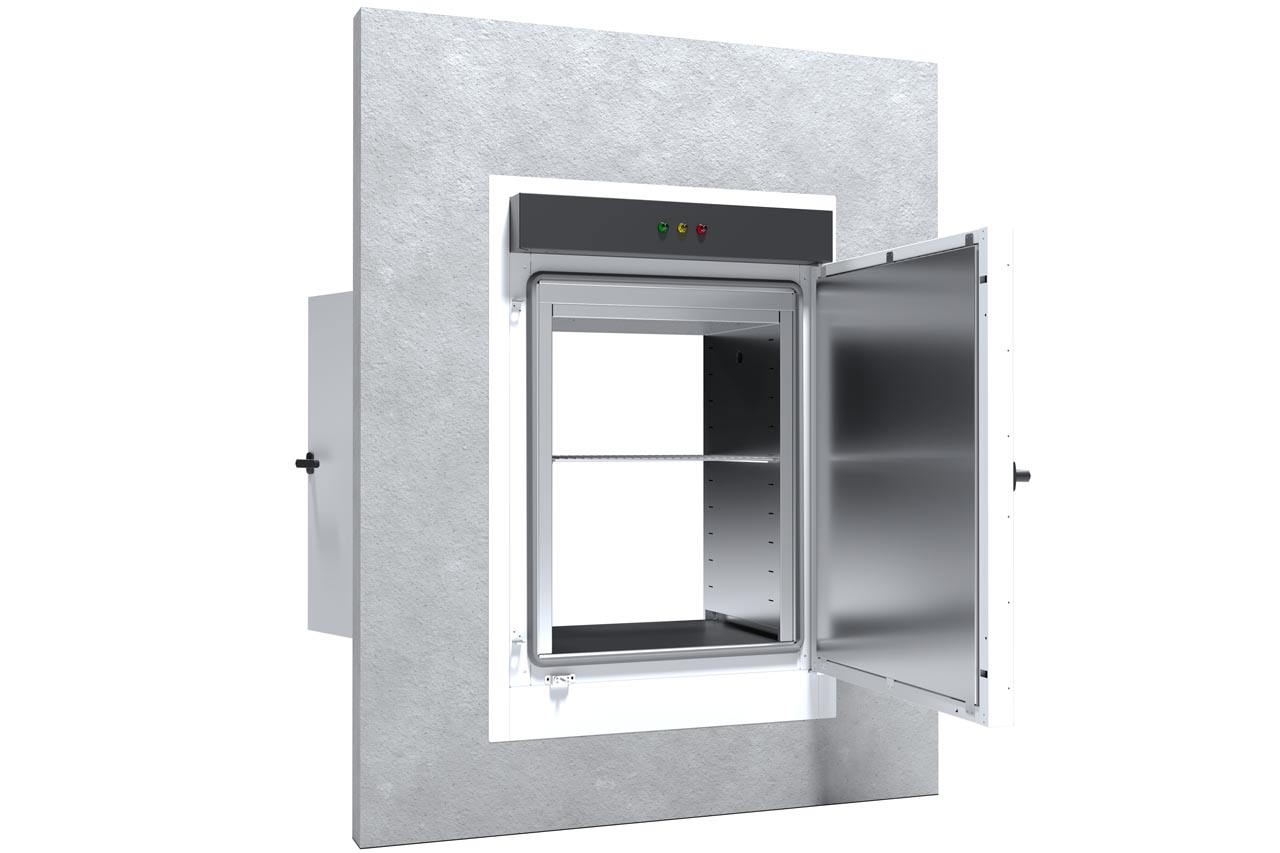

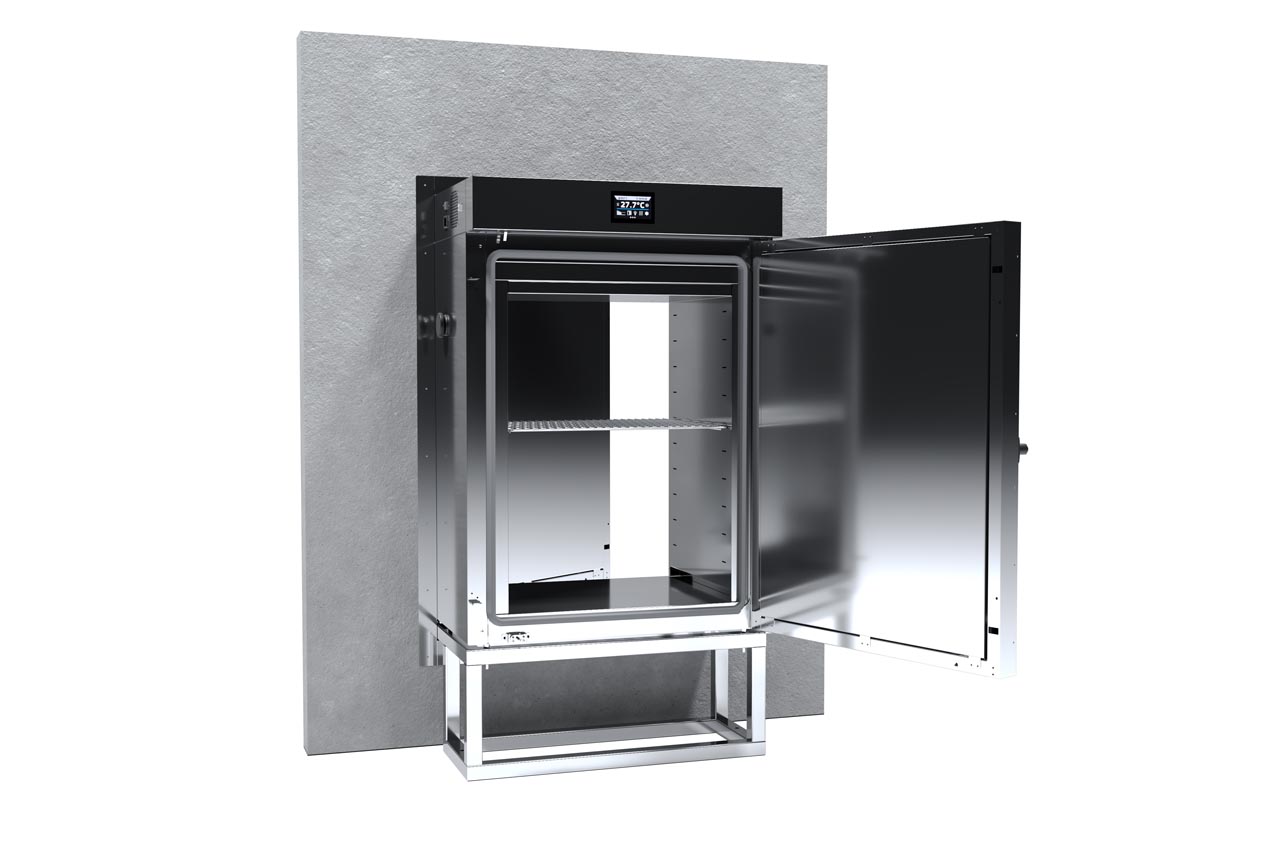

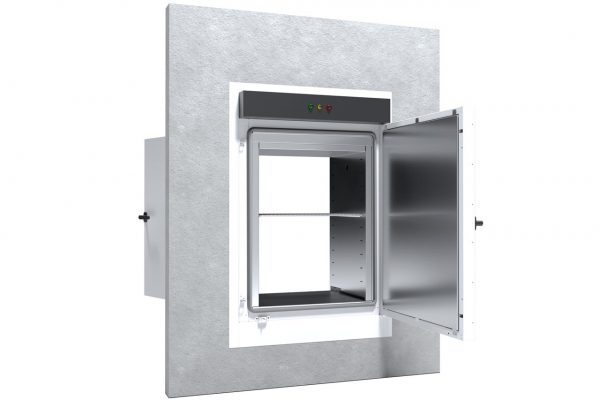

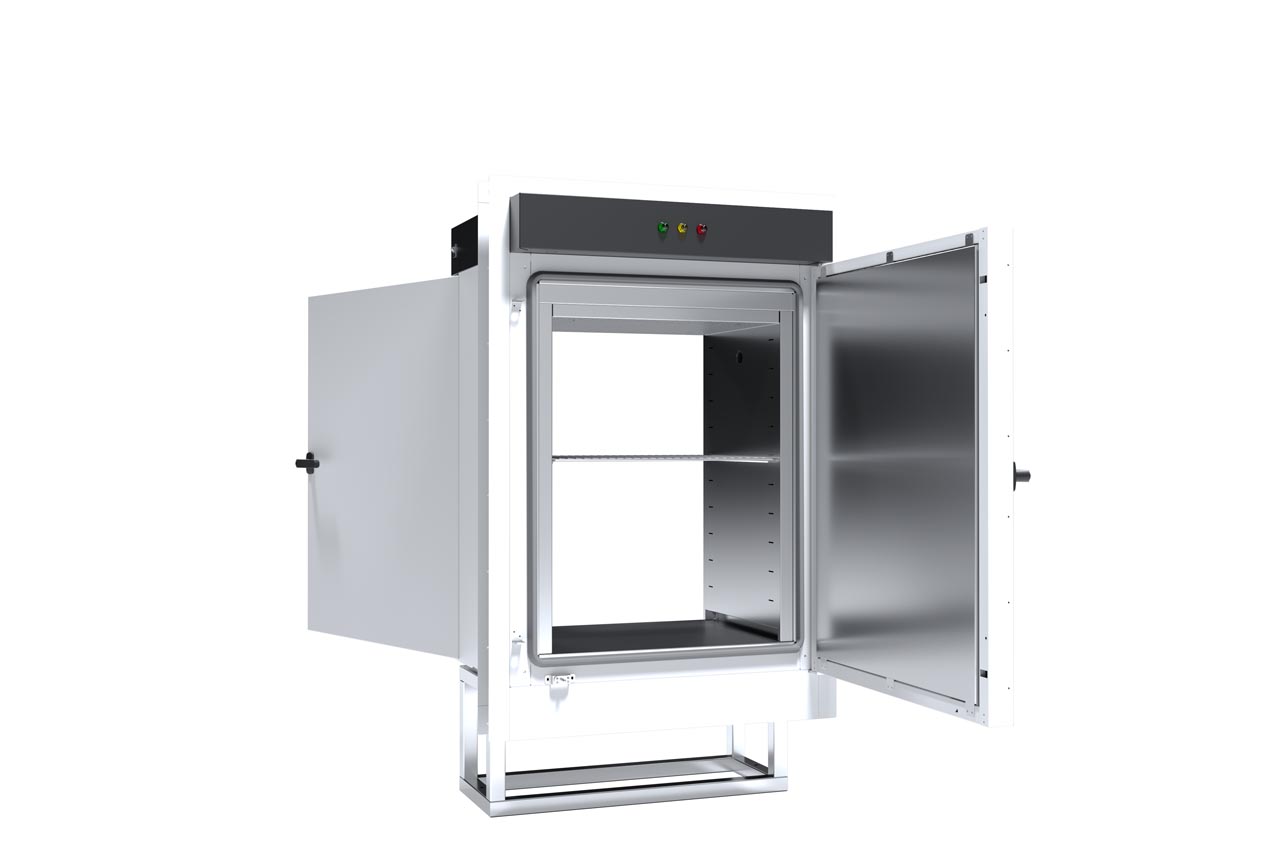

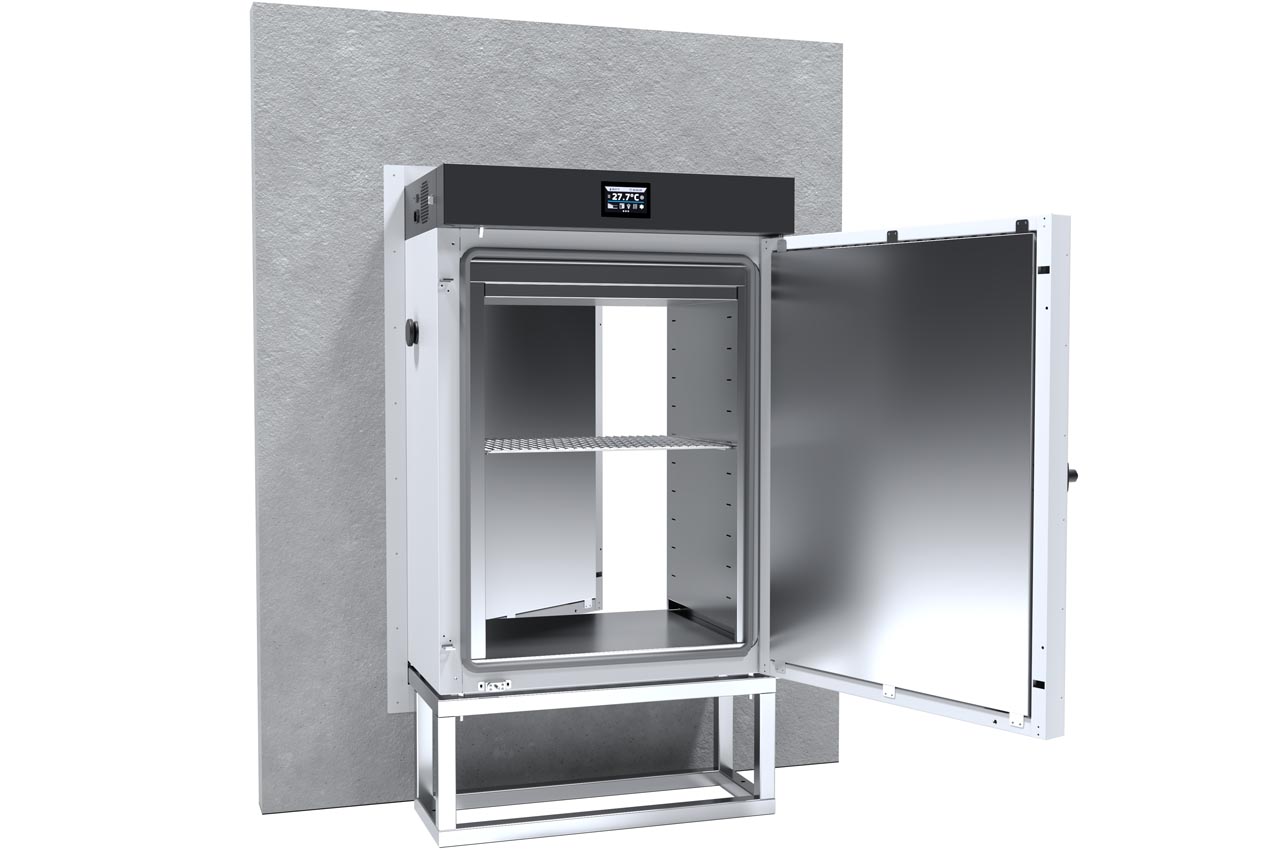

Pass-Through Sterilizer SRWP 240 Smart
Technical data Smart
Informazioni aggiuntive
| type | SRWP 240 Smart |
|---|---|
| air convection | forced |
| chamber capacity (l) | 240 |
| working capacity (l) | 240 |
| controller | microprocessor PID |
| display | 4,3" full colour touch screen |
| temperature range (°C) | 5°C above ambient temperature … +250°C |
| temperature resolution every (°C) | 0,1 |
| over temperature protection | class 2.0 to DIN 12880 / class 3.1 (option) |
| door | solid |
| interior | _bw |
| housing | _bw |
| Smart | powder coated sheet |
| IG Smart | stainless steel linen finish |
| overall dims (mm) /1/ | _bw |
| A width | 840 |
| B height | 1170 |
| depth C | 770 |
| internal dims (mm) | _bw |
| width D | 600 |
| height E | 800 |
| depth F | 500 |
| shelves (standard - max) | 3, 10 |
| max shelf workload (kg) /2/ | 10 |
| reinforced shelf version (PW) (kg) /3/ | 100 |
| max unit workload (kg) | 90 |
| reinforced unit version (W) (kg) /4/ | 300 |
| weight (kg) | 126 |
| power supply | 230V 50-60Hz |
| nominal power (W) | 3000 |
| warranty | 24 months |
